General Functions

Range

Accuracy

Type

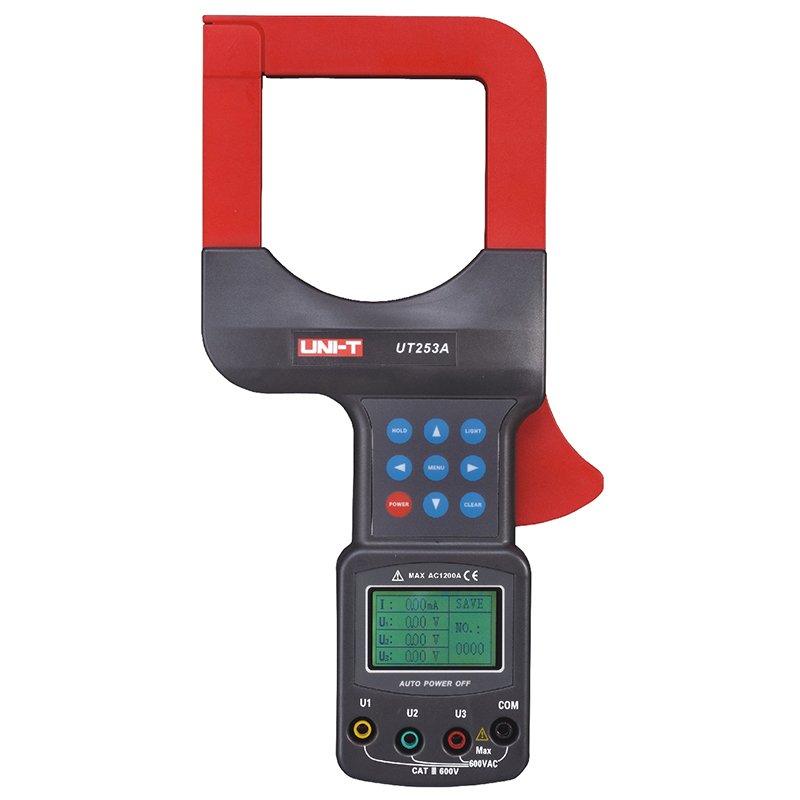

UT253A

Leakage Current (A)

Range

0.00mA～300A

±(1.5%+3)

300A～1200A

±(2%+3)

Voltage (Frequency)

0V～600V (50Hz/60Hz)

√

Resolution

0.01mA

AC (V)

Range

0.00V～600V

±(1.5%+3)

Frequency

50Hz/60Hz

√

Resolution

0.01V

√

Special Functions

Display Mode

LCD: 128 dots×64 dots

√

Jaw Size

80mm×80mm

√

Auto-range

√

RS-232 Data Transmission

√

Storage

200 groups

LCD Backlight

√

Data Hold

√

Overload Indication

OL

√

Auto Power-off

15 mins

√

Low Battery Indication

≤5.2V

√

Test Type

Clamp CT, integration method

√

General Characteristics

Power Supply

1.5V Alkaline battery (5#)×4

LCD Size

43mm X 29mm

Product Color

Red and grey

Product Weight

1000g

Product Size

275mm X 145mm X 40mm

Standard Accessories

Batteries, test leads (4 pieces: 3 red, 1 black), RS232 data cable, PC software CD, toolbox

Standard Package

Gift box, user manual, toolbox

Standard Package Quantity

6pcs

Standard Package Size

610mm X 375mm X 320mm

Standard Package Gross Weight

25kg
